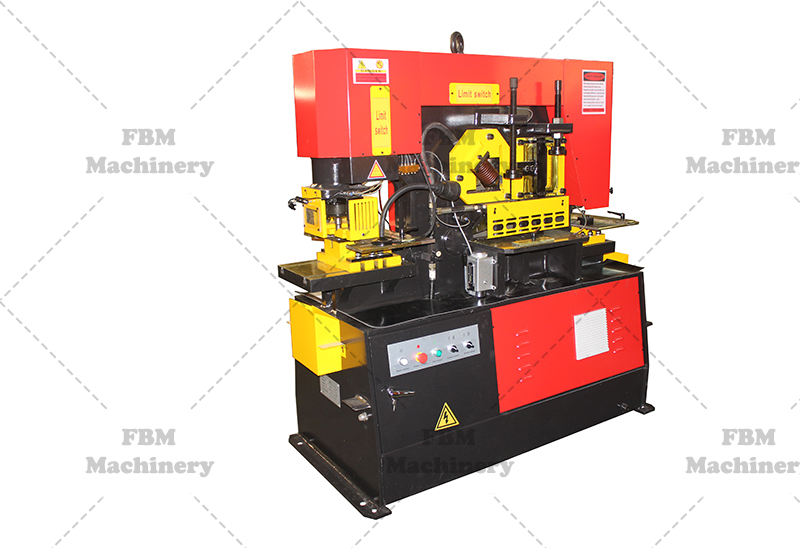

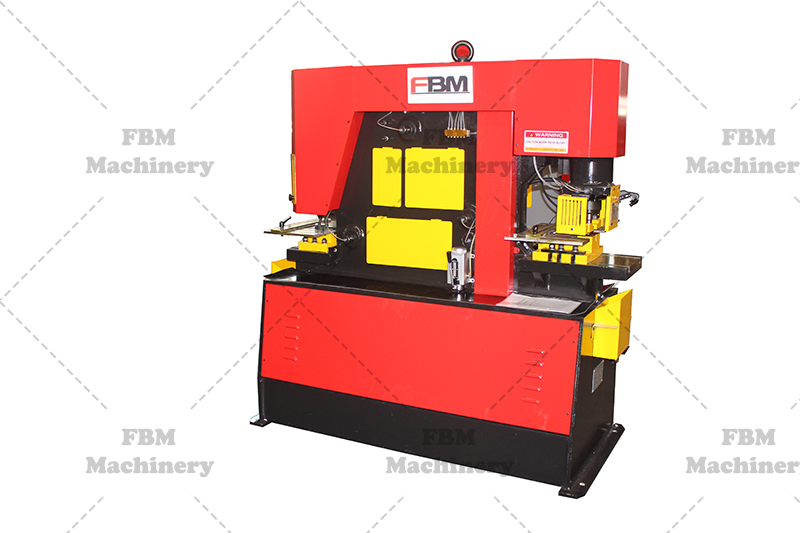

Q35Y Hydraulic Iironworker machine

I.  introduction:
Q35Y series Using hydraulic transmission,can cut and punch all kinds of angle steel, I-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching, Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station).

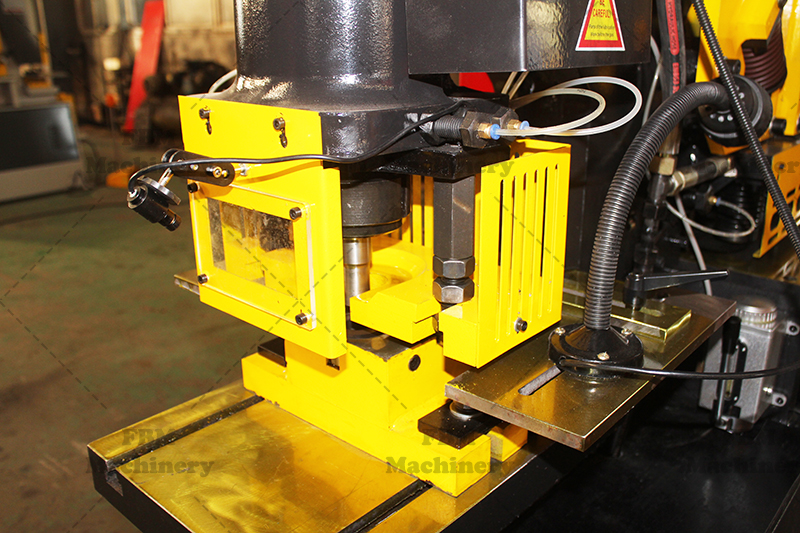

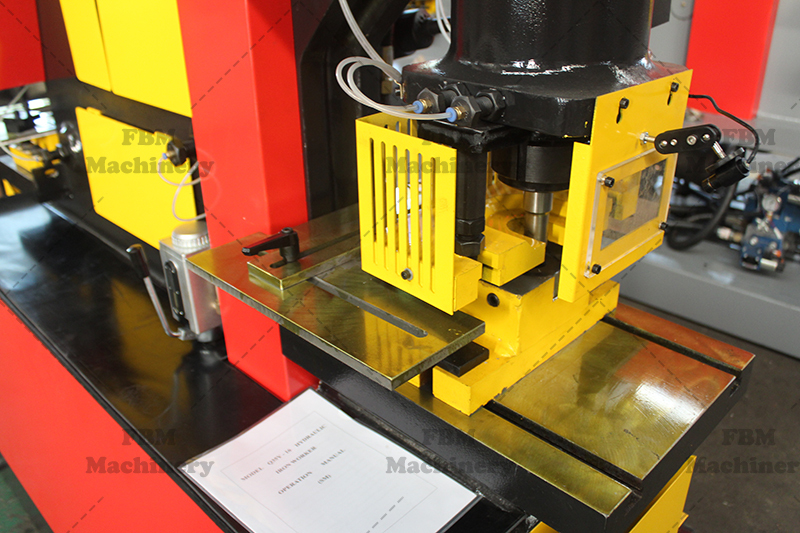

•Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.
•Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.
•Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.
Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
•Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.

II. Main functions:
•2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.
•More efficient stroke-control functions of piston rod.
•Central lubricating system
•Motor-driven rear stopper
•Lighting devices for work

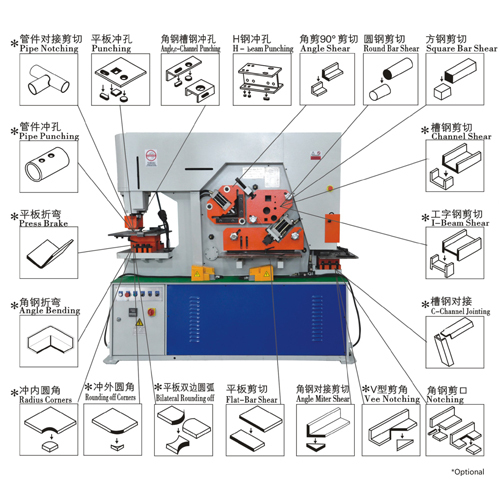

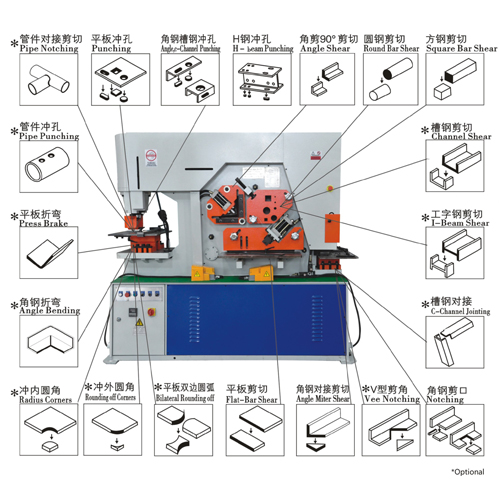

•5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.

Ⅲ.specification:
