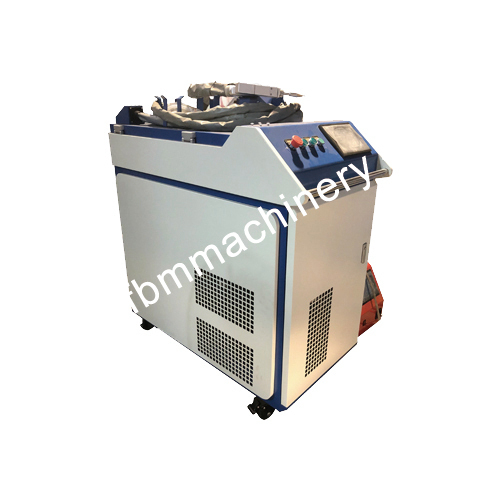

Name: Laser Welding Machine
Brand: My Web Site
SKU: FSC
Availability: InStock
Rating: 5 (1 reviews)

Home > Laser Cutting/welding/cle...

Description

Features:
1. The system is mainly composed of a laser unit and a welding unit;
2. Hand-held welding, taking into account the flexibility,efficiency and high weld quality of laser welding at the same time;
3. Modular design and layout of the overall equipment, beautiful and easy to maintain and debug;
4. High system flexibility, compatible with a wide range of models, and short changeover times;
5. The welding speed is 2-10 times faster than the traditional welding speed;
6. Simple operation,smooth and beautiful weld seam, reduce the follow up grinding process,save time and cost;
7. Welding workpiece has no distortion,no welding scar,and very strong.

Laser:
The Reci FSC series of high-power single-mode continuous fiber lasers are independently developed and produced by Reci, and are solved by solving the mode instability(TMI) and stimulated Raman scattering(SRS) that limit the average power of high-power single-model fiber lasers.Bottleneck problems such as (SRS) and poor beam quality have increased the average output power of single-cavity and single-transverse mode lasers to 3000W.
This series of products combines high average power,multiple anti-high anti-reflection, high-quality beam quality and high electro-optical conversion efficiency. It can be widely used in many places such as fine cutting, metal welding. surface treatment,3D printing and rapid prototyping, Especially when cutting thick metal plates, not only the cutting speed is fast, but also the plate slits are think and the section is bright, which is obviously superior to othe lasers of the same type on the market.

Technical Parameters：

Model	FSC 1000	FSC 1500	FSC 2000	FSC 2500
Rated Output Power (w)	1000	1500	2000	2500
Center Wavelength (nm)	1080±3
Operating Mode	Continuous/modulation
Max. Modulation Frequency (kHz)	50
Output Power Instability	<3%
Indicates Red Light Power	have
Output Interface	QBH（Customizable）
Output Fiber Core Diameter (μ m)	20（Customizable）
Beam quality(M²)	<1.3		<1.5
Output Fiber Length (m)	10（Customizable）
Operating Voltage（VAC）	220		380
Max. Power Consumption (w)	4000	6000	8000	10000
Control Method	External rs232 / external ad / super terminal
Power Adjustment Range (%)	10~100
Operating Temperature Range (°C)	5~40
Operating Humidity Range (%)	<70
QBH Cooling Water Temperature (°C)	Room temperature
QBH Cooling Water Flow (L/min)）	>10
Cooling Water Temperature (°C)	25
Whole machine cooling water flow（L/min）	>12	>15	>25	>30
Dimension W×H×D（mm）	483×191×740		483×214×850
Weight （kg）	<60		<80

Welding head:

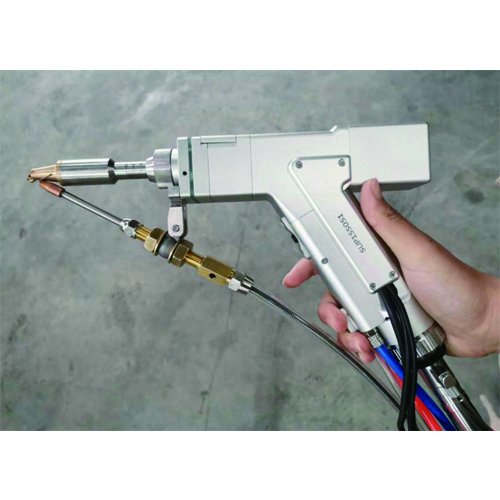

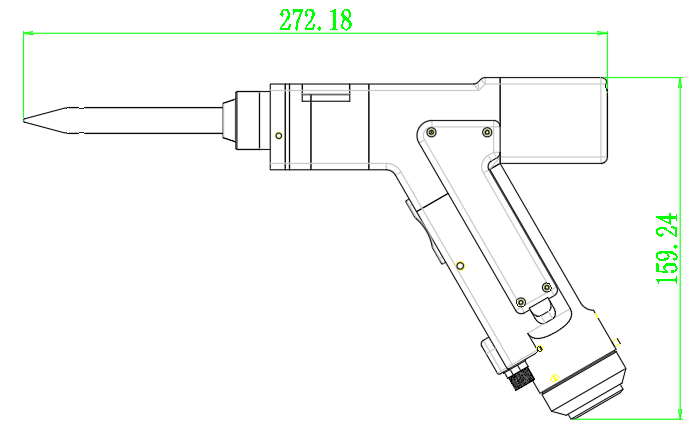

SUP15S is a handheld welding cutting head launched in 2019. The product covers hand-held welding guns and self-developed control systems, and is equipped with multiple safety alarms and active safety power and light cut settings. The product can be adapted to various brands of fiber lasers; the optimized optical and water-cooled design allows the laser head to work stably for a long time under 2000W.

Basic features: self-developed control system, multiple safety alarms, smaller size, flexible operation, and easy to use.
More stable: all parameters are visible, real-time monitoring of the whole machine status, avoiding problems in advance, more convenient troubleshooting and solving problems, and ensuring stable operation of the cutting head.
Process: all parameters are visible, the welding quality is more perfect, the deformation is small, and the penetration is high
stable parameters and high repeatability: the determined nozzle air pressure and lens state, as long as the laser power is stable, the process parameters must be repeatable. Greatly improve efficiency, while also reducing operator requirements.

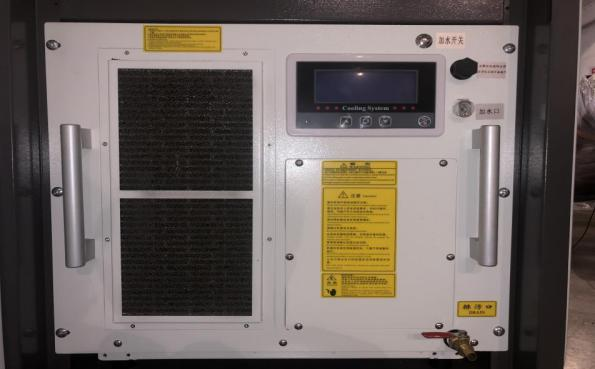

Chiller :
The water cooling system consists of an internal circulation system and an external circulation system. The internal circulation system is self-contained by the laser, and the external circulation system uses a laser-specific water-cooling unit to ensure long-term stable operation of the laser.
This product adopts high-performance controller as the main control device, featuring beautiful structure, high reliability and strong anti-interference. The whole machine is compact in structure, small in volume and high in mechanical strength. Good cooling performance and high efficiency.

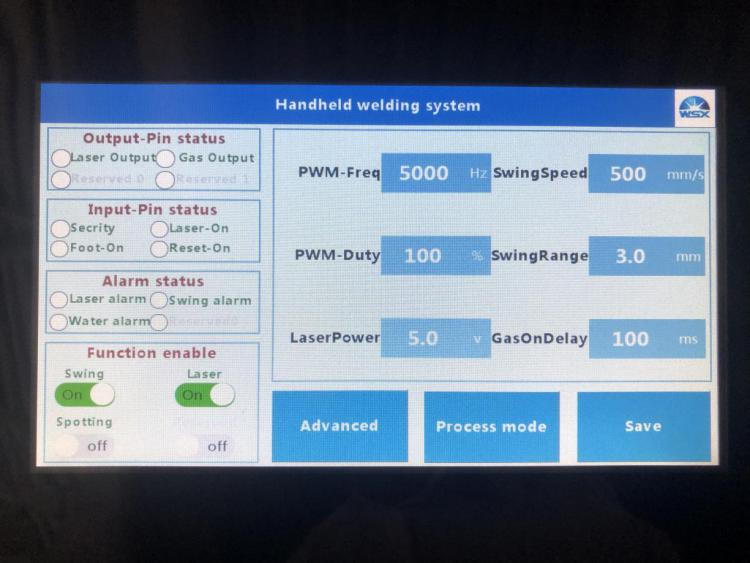

Laser welding control system:

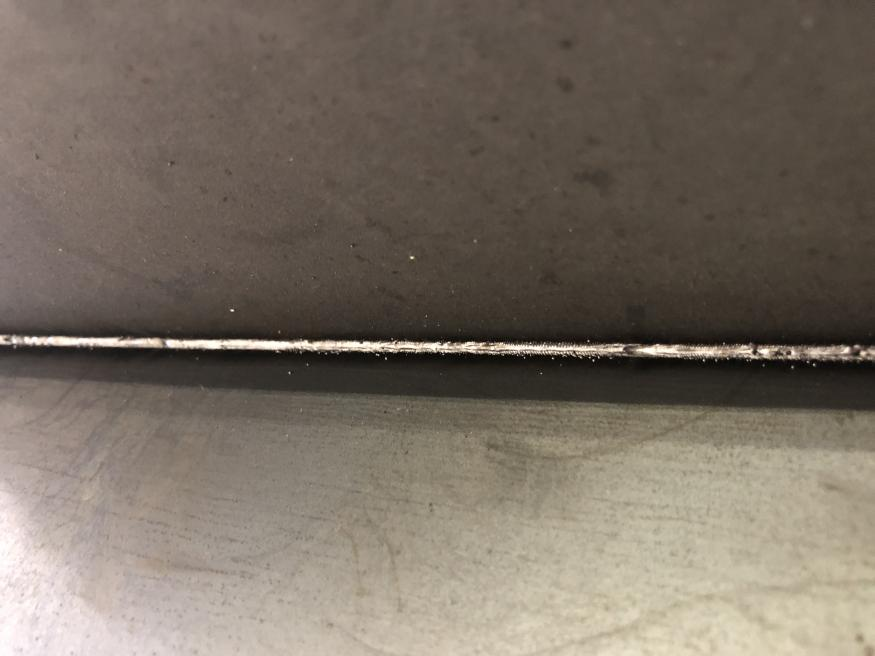

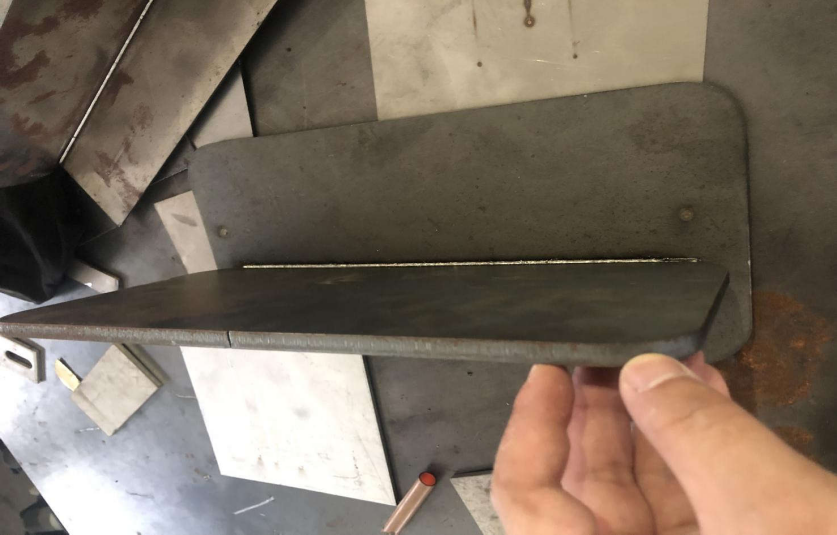

Sample:
